Arrivals — Cartoon Welcome Dog, Airport Arrivals Hall, Oslo, Norway

An airport arrivals hall is a room full of people who have been travelling for eleven hours and want to be somewhere else. The operator wanted one thing in it that was pleased to see them.

The brief

Not a sign, not a logo wall, not a mural. A single freestanding figure that would read as a welcome from thirty metres away, in a hall with no natural light and a lot of moving luggage. A cartoon dog, seated, large enough to be a landmark and small enough that people would walk up to it. The one fixed instruction was that it must never look like advertising.

Weight, because airport floors

The controlling constraint was not wind and it was not the sculpture. Arrivals halls sit above baggage handling, and the floor is a structural slab with a point-load allowance that has nothing to do with how large a thing you can see. A stone or cast figure at this size would have needed a spread foundation cut through the deck. The finished piece weighs 190 kg — shell, armature and base plate — and sits on a 900 mm cast aluminium base that spreads it inside the existing allowance. Nobody had to open the floor.

Fire, because a public interior

Interior public-space work is governed by reaction-to-fire class rather than by appearance, and this was the long half of the job. The laminate uses a phenolic resin with a fire-retardant additive and the whole shell is finished with an intumescent clear coat, tested to EN 13501-1 class B-s1,d0. The painted gradient sits underneath that coat, so the surface people see is not the surface carrying the rating.

Reading through a crowd

A figure in a busy hall is read in fragments, between people and trolleys, so the design leans on silhouette rather than detail. The seated pose gives one continuous outline; the ears are 140 mm thick and set at 45 degrees so they still register when seen edge-on; the tail is 1.1 m of unbroken curve that a child can find from the far side of the hall. The face carries two plain oval eyes and nothing else — at 2.8 m, anything more becomes a grimace.

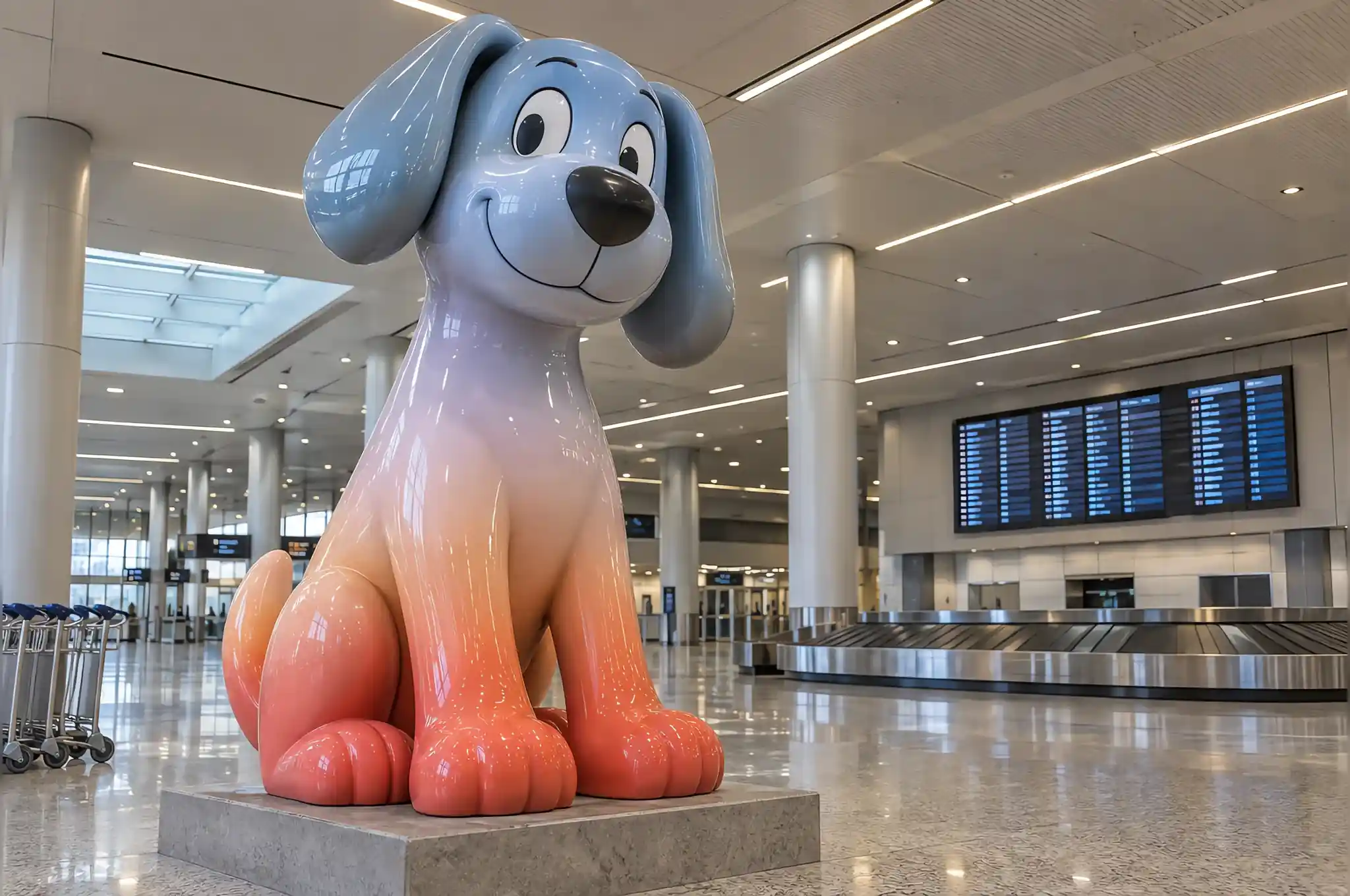

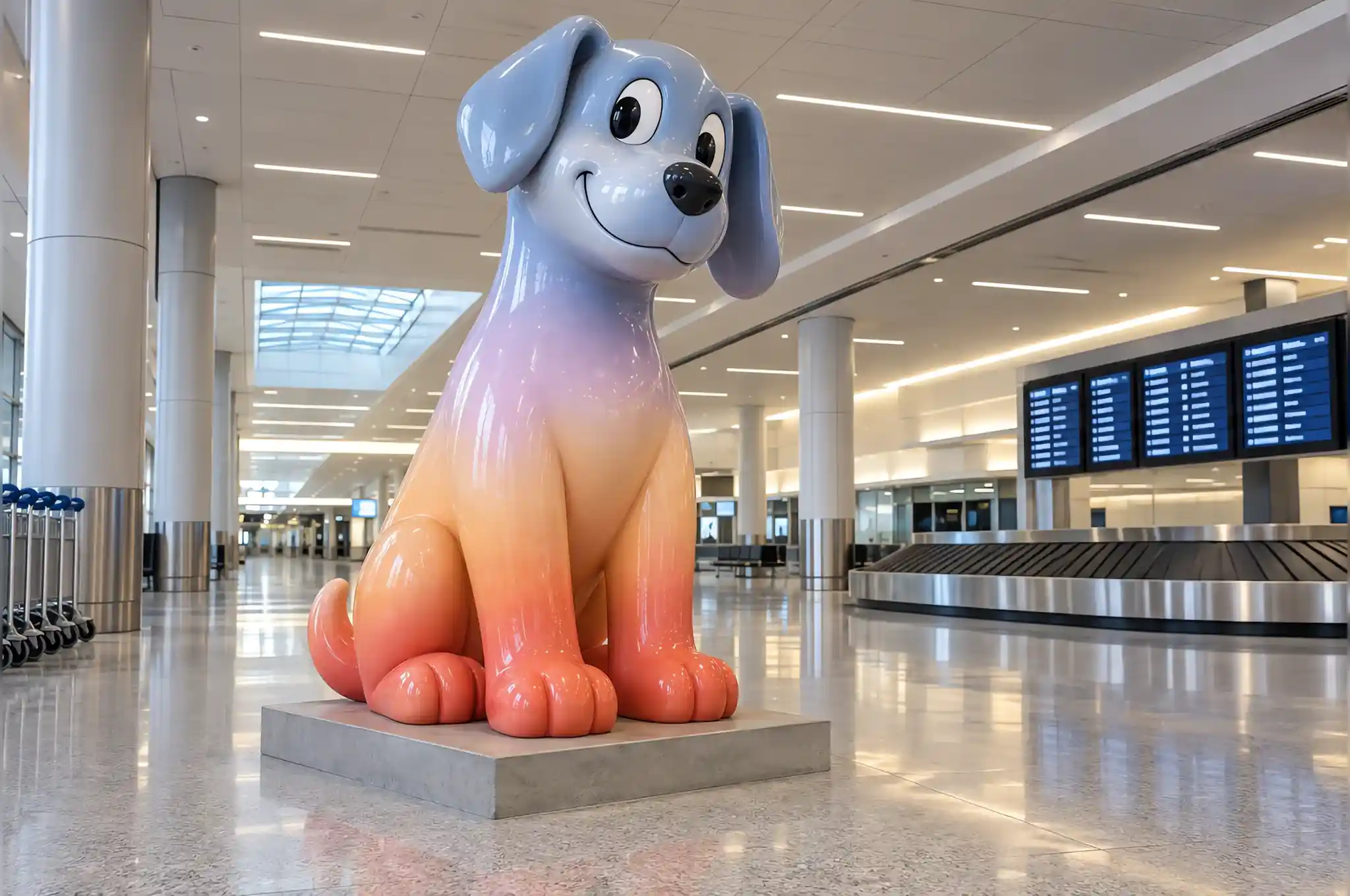

On the concourse

It stands on the arrivals side, four metres past the last customs door, angled towards the exit so that people meet it face-on as they come through. What the operator wrote afterwards is in the panel above.
