Fold — Cartoon Abstract Character, Hospital Garden, Lyon
The brief from the hospital trust was not about beauty. It was about dwell time: they wanted something in the courtyard that a patient would be willing to sit beside for twenty minutes.
The brief
One cartoon character, roughly 2 m, in the middle of a gravel courtyard. Curled or resting rather than standing. No likeness, and nothing that could be read as a person or as a religious symbol. The trust was clear that the piece had to be something you could ignore — which sounds like faint praise and is in fact the hardest brief we have been given.
A cartoon character that can be ignored

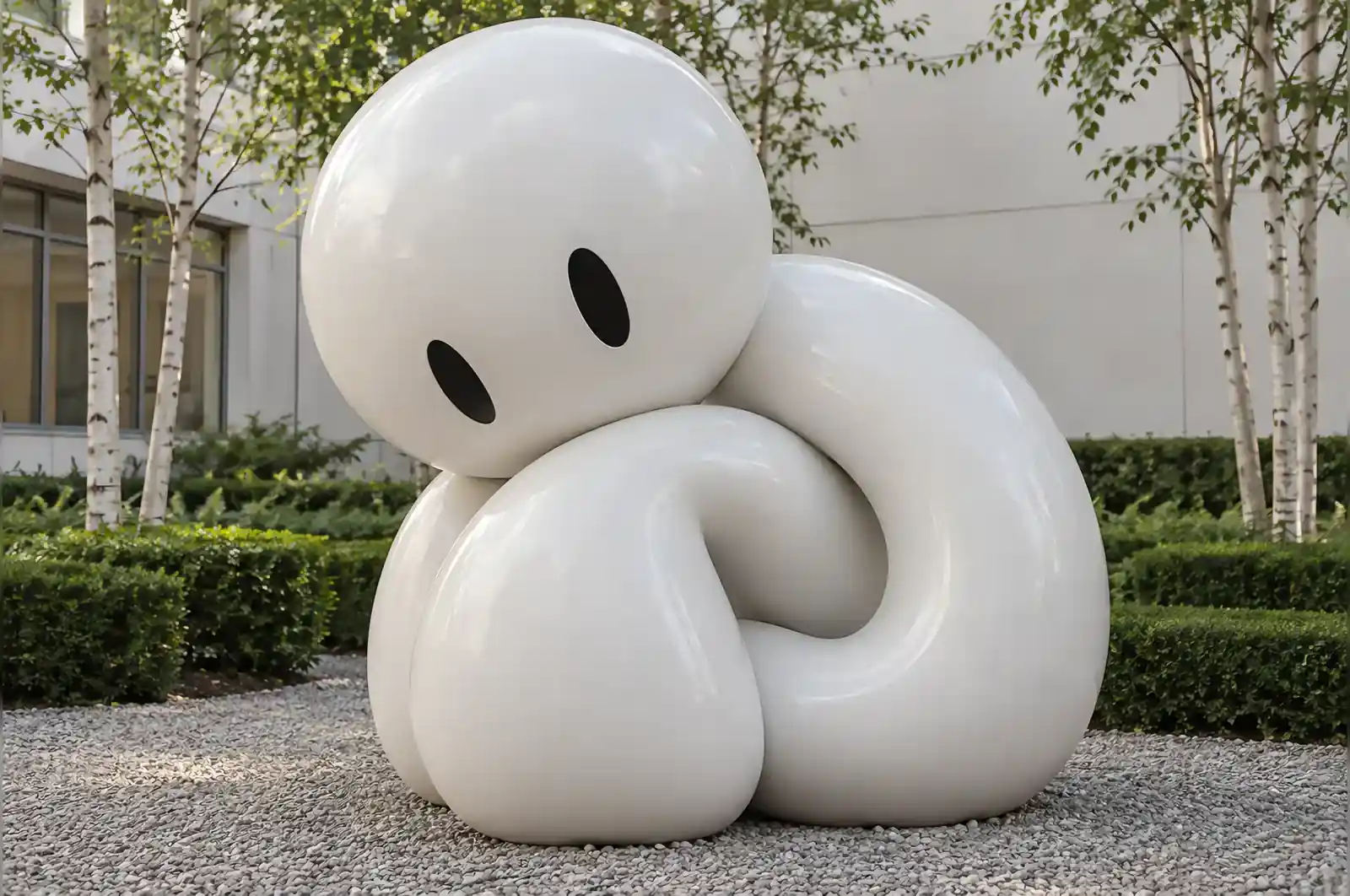

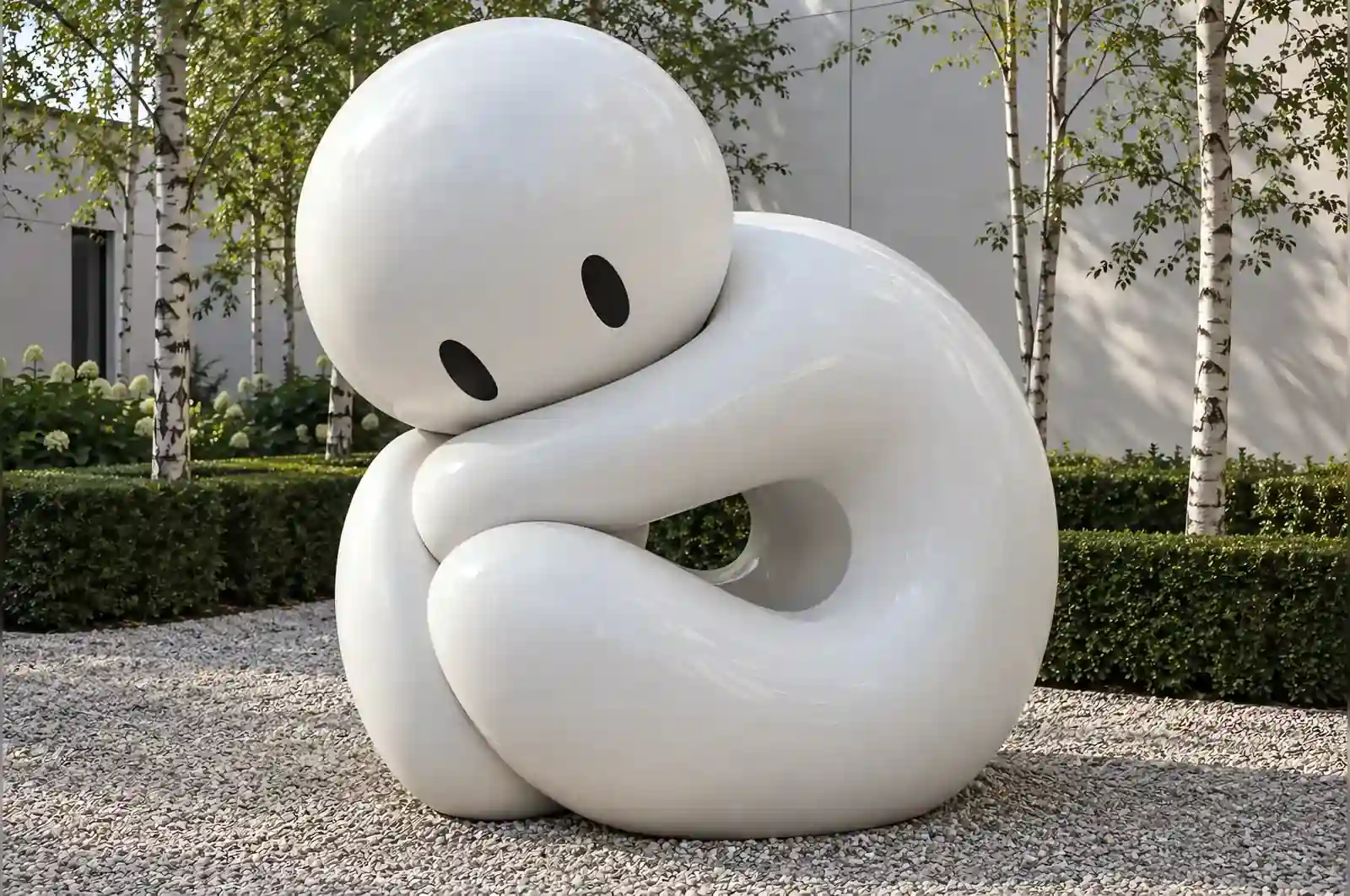

That requirement ruled out almost everything a cartoon character normally does. Brightness asks for attention; a grin creates a mood; a standing pose creates a presence. What was left was the same simplification we would use anywhere — an oversized rounded head, two simple eyes, a body folded into a soft rounded mass with a clear hollow through the middle — curled up at roughly the height of a seated person, so it reads as something resting rather than something watching. There is no front to it, and no detail anywhere for the eye to catch on.
What could not be given up
On this site the non-negotiable was the placement, and it decided everything else before a single decision was made. The piece stands in a hospital courtyard garden, off the main circulation line, where the whole point is that a patient can sit beside it and not have to attend to it. That fixed the size at 2.0 m high rather than something taller. A figure above about 2 m starts to read as a monument; it gathers the space around it, which is the opposite of what this setting needed. The height was therefore held at 2.0 m and the composition widened instead, to 1.4 m across, so the piece sits low and grounded rather than standing over the gravel.
If the trust had not needed the piece to be ignorable, two things would have changed. The finish would have gone back to gloss: on a courtyard, chalk-white matte was chosen because a glossy surface throws a hard highlight that follows the viewer, and that highlight is precisely the kind of detail this brief could not carry. And the piece would almost certainly have been moved indoors, where it could be a coloured focal object rather than a quiet presence — but a hospital courtyard is the one place where a patient has time to sit, and indoors the twenty-minute dwell time the trust was designing for would not exist.
The finish
Matte chalk-white paint with a fine visible texture under a UV clear coat — the one gloss piece we have made where we then took the gloss off. In a courtyard a glossy surface throws a hard highlight that follows you; a matte one only changes as the light changes. Over a northern European year that is the difference between a sculpture that always looks the same and one that is different every day.
Siting

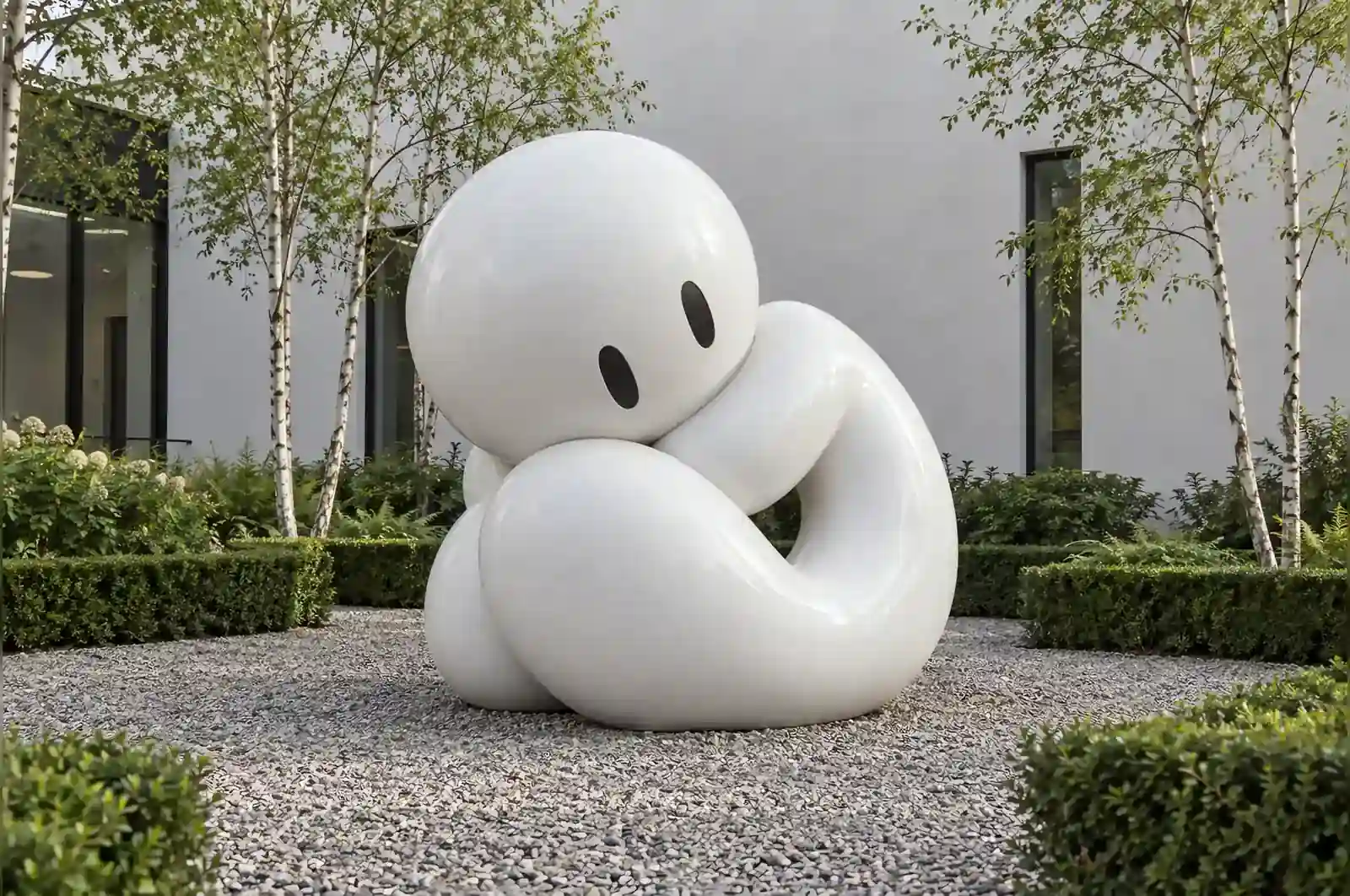

Set directly on a low pale stone base in the gravel, off the main circulation line so it never has to be walked around, and placed to the north of the courtyard seating, which is where the light comes from for most of the day.
Maintenance at this size and finish
At 2.0 m high and 1.4 m wide, over a steel armature and finished in a chalk-white matte with a fine texture, the piece is largely maintenance-free in a way a glossy surface is not. A gloss finish shows every mark, and in a hospital courtyard it would need regular polishing to keep its reflection — which is labour and access on a site where the sculpture cannot be cordoned off easily. The matte surface hides fine dust and the day-to-day scuffs of a public space, and the UV clear coat is there to do the one job matte paint cannot do for itself: keep the chalk-white from yellowing under the northern European light.
The maintenance that does apply is simple and seasonal. Because the surface is matte and textured, it should be cleaned with plain water and a soft cloth rather than a polish, since any residual sheen on a matte surface becomes visible as a patch. The gravel courtyard means dust can build at the base over a dry spell; the low pale stone base keeps the FRP shell out of direct contact with the ground, so there is no splashback staining and no standing water against the fibreglass. The one annual check is the clear coat itself: a matte finish is only as weatherproof as the coating over it, and the steel armature inside is protected by the sealed FRP shell rather than by anything that can be seen or reached from outside.
What it cost
Fibreglass surveys at $900–$5,900 for 1.5–2.0 m and from $3,800 at 2.0–3.0 m. This piece sits right on that boundary at 2.0 m, and it came in at $6,200 delivered and installed, eleven weeks from 3D approval.
What this means for your own brief
The lesson of this commission is that the brief does the design work. Before you ask for a quote on something similar, settle three questions and the answer largely writes itself.
First, what is the piece for — to be looked at, or to be sat beside? If it is a focal object at an entrance, the finish and colour matter and gloss earns its place. If it is for a waiting space or a garden where people rest, then the quiet, matte, self-effacing approach is the correct one and a standing figure with a grin would be a mistake.
Second, what is the setting, and what does the light do there? This piece is placed to the north of the seating because that is where the light comes from for most of the day, and the matte finish only works because of how it responds to that light. The same piece in a shaded east-facing corner would read as a grey mass; the same piece under hard south light would need the size and finish rebalanced.
Third, who maintains it? A chalk-white matte is the low-maintenance choice in a public or clinical space, but it is a wash-only surface, so if your site has no one who will touch it with a cloth and water, a darker or busier finish may be the more honest specification. Settle these three — purpose, light, upkeep — and a quote becomes a short conversation rather than a long one.
Patients sit with it. Nobody was told to. It is quiet enough to sit with, which is exactly what we asked for.
A hospital trust in Lyon
