Cosmos — Cartoon Astronaut, Theme Park Entrance, Orlando, USA

A theme park entrance has one job that no ordinary sculpture brief has to survive: twenty thousand people a day, and roughly a quarter of them touching it.

The brief

A family park adding a space-themed gate wanted a figure that could work three ways at once — the photo point, the landmark visible from the far end of the entry plaza, and the thing printed on the map. A cartoon astronaut at 4 m, waving, glossy, unmistakably a character rather than a statue.

Touch, and what it does

This is the part that decides the specification. Public art is normally built to be looked at; a theme park gate is built to be climbed. The park’s own rules forbid barriers at the photo point, so contact had to be designed in. The laminate carries an extra 3 mm gel-coat wear layer on the legs, boots and the front of the helmet, and every external edge is radiused to a minimum of 12 mm so there is nothing for a hand or sleeve to catch on. The helmet is the highest contact point and the surface most leaned upon, so its visor band is a moulded recess rather than a painted stripe — paint on a curved, constantly wiped surface is what fails first.

Colour under this sun

Central Florida is a hard test for painted fibreglass: UV, humidity and heat cycling together. A white suit was the obvious choice and the wrong one. White shows every handprint and every scuff, and it climbs to around 60°C in direct sun, which matters on a surface children hold. The finish is tangerine, a mid-chroma colour that holds its tone under UV, with a navy visor band and cream boots. The clear coat is a UV-stabilised two-part polyurethane, with a gloss retention figure written into the specification rather than assumed.

Queue sightlines

The raised arm is on the side the queue faces, and the figure is turned twelve degrees off the plaza axis so the arm is silhouetted against sky instead of against the park’s own signage. Overall height to the top of the helmet is 4.0 m and the plinth is deliberately low at 200 mm, so the piece can be walked around rather than admired from a distance.

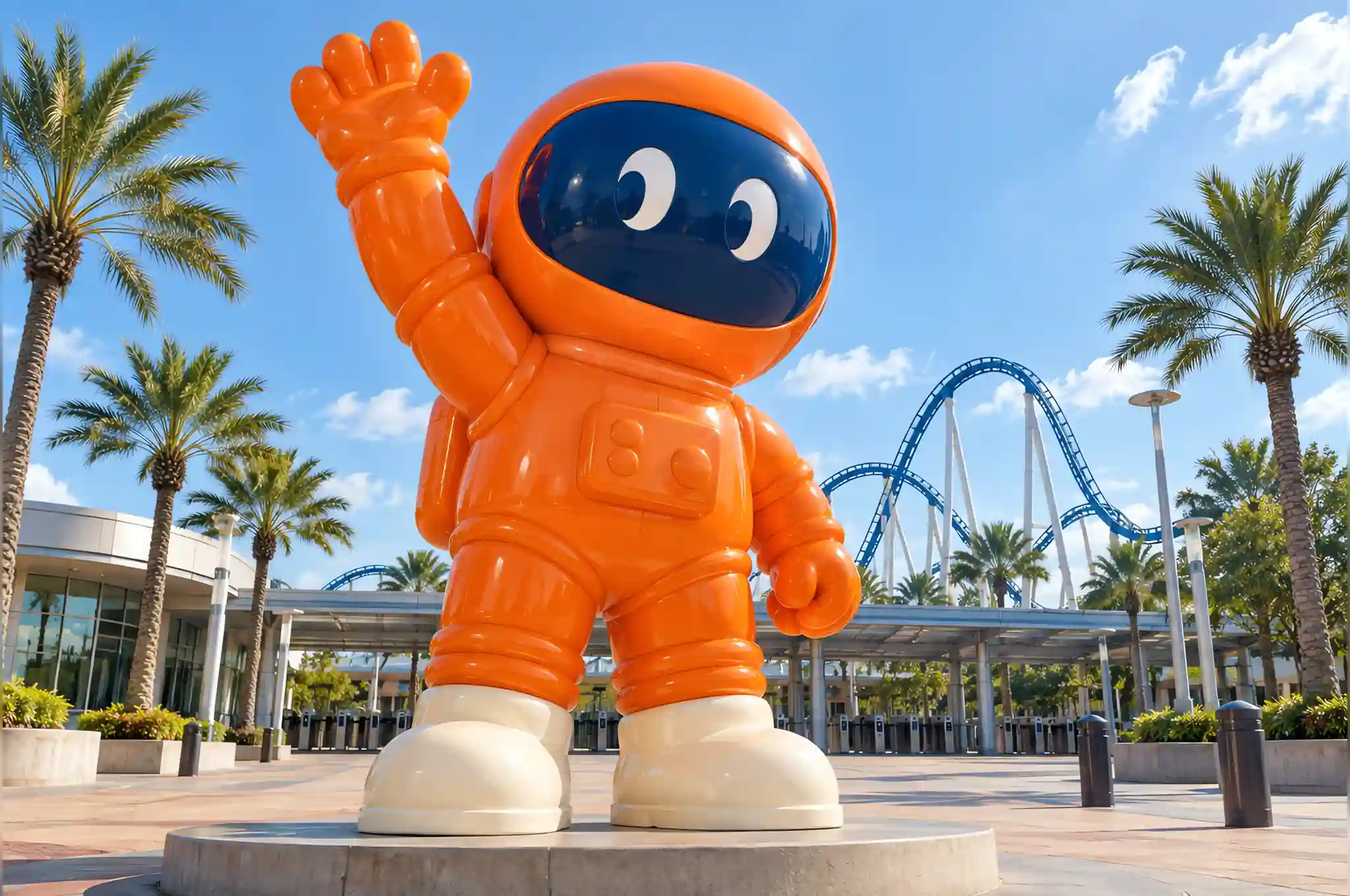

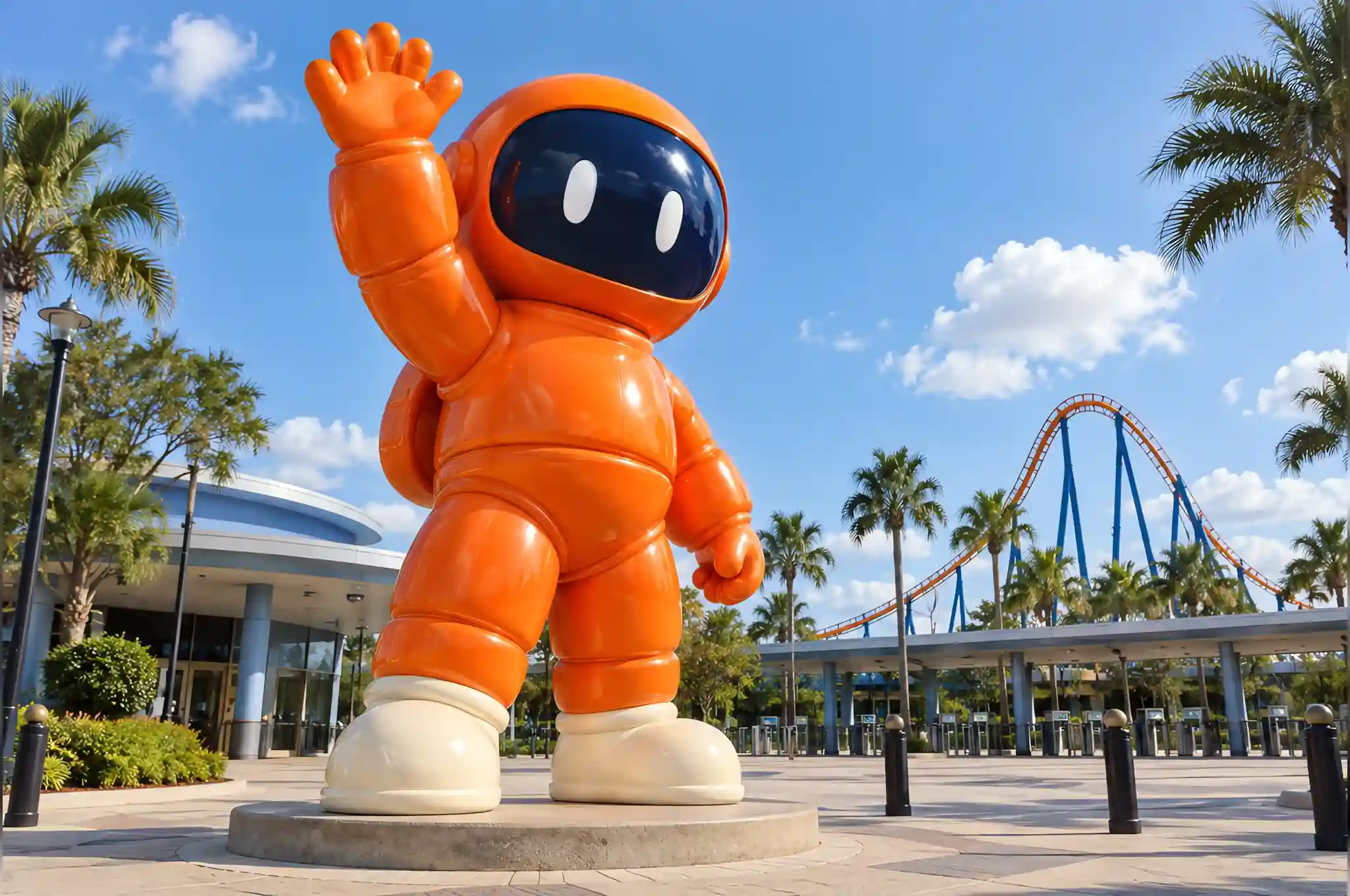

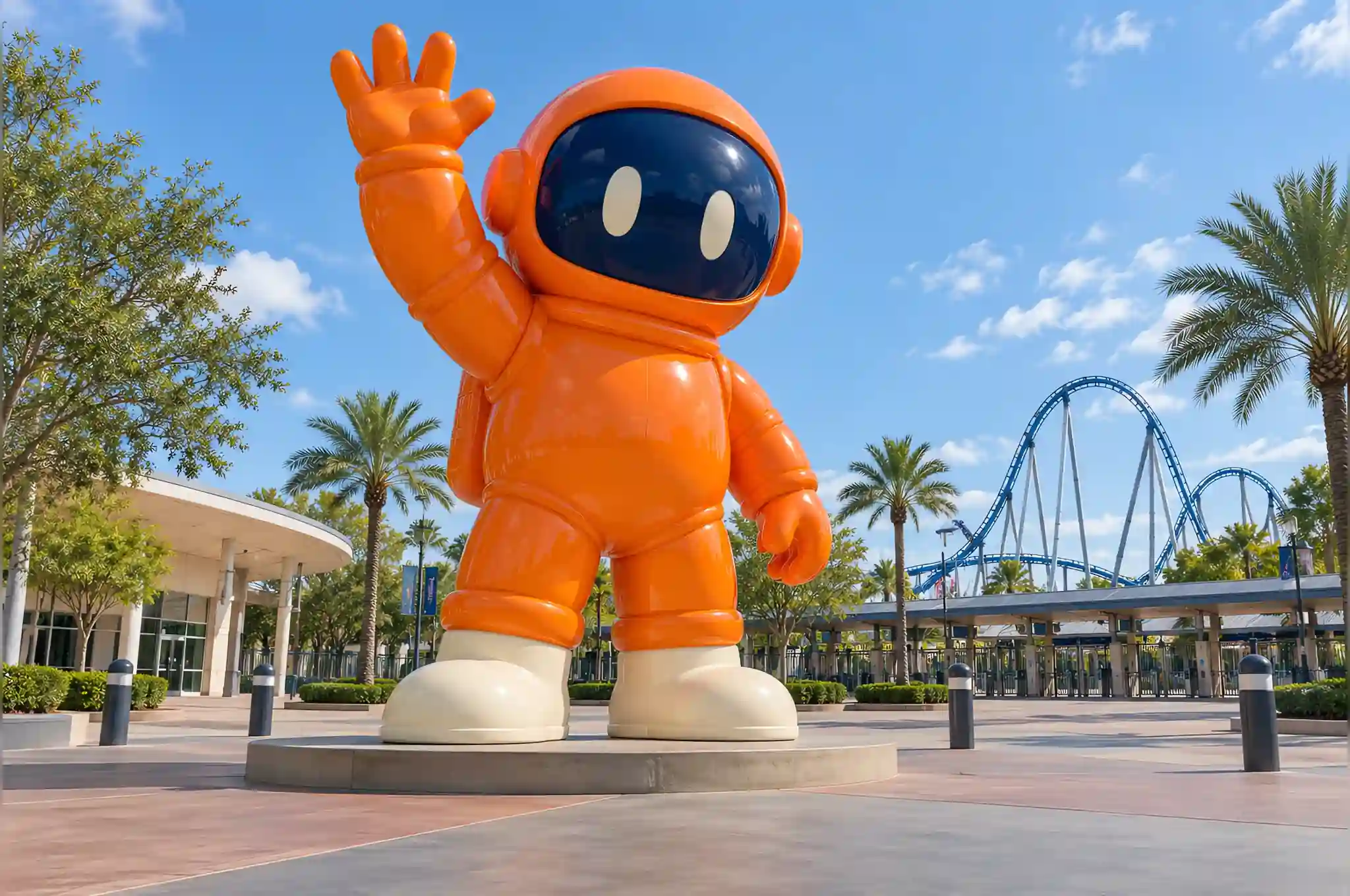

At the gate

It stands in the centre of the entry plaza, on the axis between the ticket line and the first ride. How the park describes it is in the panel above.
